The PVC Door System is designed with high performance in mind, featuring a 5-chamber structure based on an 70 mm seating width. This thoughtful design brings together the most suitable building blocks to ensure optimal performance. During the development process, factors such as window performance, thermal and sound insulation, strength, and sealing properties were all considered holistically. Additionally, the profiles are manufactured according to the EN 12608-1 standard, ensuring quality and consistency.

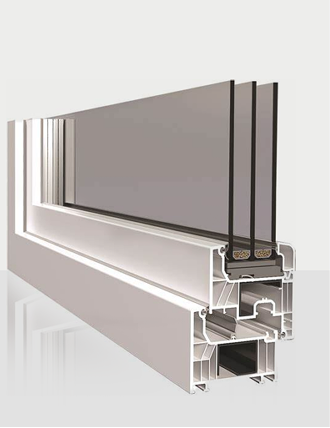

The PVC Door System excels in thermal insulation by integrating several key design elements. The system features an 70 mm platform with 5 chambers and 3 gaskets (including a middle gasket) to minimize heat transfer. As a result, it achieves a low heat and conductivity coefficient (Uf) of 0.92 W/m2K. Furthermore, the system’s 70 mm width allows for triple glass applications with a glass thickness of 52 mm, resulting in a superior U window value (Uw: 0.78 W/m2K). This combination of profile section and glass thermal values enhances energy efficiency, maintaining comfortable indoor temperatures.
The PVC Door System features profiles with support sheets that provide high static values, essential for areas with strong wind loads. These high static strength sheets enable the creation of wider windows, expanding the field of view without compromising stability. The system also offers a broad product range, including standard frames, sill frames, common rails, and various wing and dropper wing options for inward and outward opening doors. Additionally, there is a comprehensive auxiliary profile group to accommodate specific design needs, such as corner turns, facade profiles, and different glass thickness applications ranging from 24 to 52 mm. The system also supports various color options, leveraging the rich palette of Egepen Deceuninck.
Art Profile combines elegance, insulation, and durability, offering stylish comfort for modern spaces.
Profile Width: 70 mm
Number of Chambers: 5
Compatibility: Suitable for Doors
Glass Thickness: 6mm, 8mm, 10mm, 24mm, 30mm, 36mm, 44mm and 58mm
Thermal Insulation: Enhanced with 3 gaskets, 1.1- 1.5w / m2K
Standard: TS EN 12608-1
